Product aesthetics drive consumer choice just as much as functional capabilities. If a competitor copies the distinct look and feel of your innovation, they can steal your market share without violating a single functional claim.

A design patent is a powerful, cost-effective intellectual property tool issued by the United States Patent and Trademark Office (USPTO). It grants inventors exclusive legal rights over the unique, ornamental, and aesthetic appearance of a functional item, serving as a vital guardrail against copycat product designs.

1. What is a design patent?

A design patent is a type of legal protection granted by the USPTO that shields the unique visual, ornamental appearance of a practical object. It does not protect how an item works, but rather how it looks—including its shape, surface configuration, ornamentation, or a combination of these elements.

Utility Patents (Function) vs. Design Patents (Appearance). Source: Northern Virginia Graphics

2. What is the main difference between a design patent and a utility patent?

As shown above, a utility patent protects the structural, mechanical, or functional operations of an invention (how it works). A design patent protects the aesthetic and visual configuration (how it looks). If you invent a toaster with a new mechanical internal heating coil, you file a utility patent. If you invent a toaster with an entirely new, sleek outer shell configuration, you file a design patent.

3. How long does design patent protection last?

A U.S. design patent is valid for exactly 15 years from its date of issuance (grant date), provided the application was filed on or after May 13, 2015. Unlike utility patents, which expire 20 years from the original filing date, design patents calculate their expiration from the grant date.

4. What is the single biggest strategic benefit of filing a design patent application?

The primary benefit is that design patents are highly effective at blocking direct product cloning. Competitors can easily re-engineer a product's internal components to bypass a utility patent, but if consumers buy your product based on its distinct visual style, a design patent stops competitors from selling an identical-looking knockoff.

5. Why are design patents uniquely effective at stopping counterfeiters online?

E-commerce platforms like Amazon, eBay, and Alibaba have streamlined intellectual property enforcement programs. Because evaluating design patent infringement is entirely visual, platform administrators can easily compare a copycat listing to your patent drawings. This makes it far easier to secure an instant e-commerce takedown compared to utility patents, which require complex technical analysis.

6. What unique financial remedy do design patents provide in court?

Under federal law (35 U.S.C. §289), design patent owners have access to a powerful enforcement tool: the right to recover the total profits made by an infringer from the sale of the copycat article. This "disgorgement of profits" remedy is completely unavailable for utility patents and often leads to massive damage awards.

7. How do design patents protect digital user interfaces (GUIs)?

Design patents are not limited to physical hardware. Tech companies frequently use them to protect Graphical User Interfaces (GUIs), distinct software icons, and dynamic screen displays. If you design a novel, visually distinct layout for a mobile app or digital dashboard, a design patent can prevent competitors from copying your digital layout.

8. Can I file both a design patent and a utility patent for the same product?

Yes. This is called a dual-protection strategy. If an innovation features both a groundbreaking functional mechanism and a distinctive aesthetic design, filing both applications creates a robust defensive wall. For example, Apple famously protected both the internal smartphone mechanics (utility) and the distinct rounded-corner rectangle shape (design) of the iPhone.

9. Can a design patent protect a brand before it qualifies for Trade Dress?

Yes. Trade dress protection (a branch of trademark law) shields a product’s distinct visual packaging or shape, but it requires you to prove "secondary meaning"—meaning consumers must already widely recognize the design as your brand. A design patent acts as a vital bridge, giving you immediate exclusivity for 15 years while you build up that public brand recognition.

10. How do courts determine if a competitor is infringing a design patent?

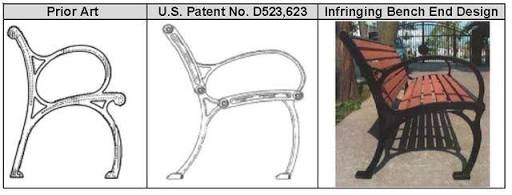

Courts utilize the "Ordinary Observer" Test. Infringement occurs if an ordinary purchaser, giving the amount of attention a buyer usually gives, would find the two designs substantially similar, and would be induced to purchase the copycat product believing it to be the patented design.

11. What happens if a design is driven entirely by function rather than aesthetics?

If a product's shape is dictated strictly by functional necessity—meaning there is no other way to shape the object to make it work—the design is considered purely functional and is ineligible for a design patent. To qualify, the design must possess ornamental freedom, meaning alternative shapes could achieve the same mechanical outcome.

12. Are design patent applications kept secret while they are pending?

Yes. The USPTO keeps all design patent applications strictly confidential and unpublished throughout the entire examination period. The public only sees the design when the patent is officially granted. If the application is rejected or abandoned during examination, the visual drawings are never disclosed to the public, preserving your trade secrecy.

13. Can a design patent protect an entire product line or just a single item?

A single design patent can only claim one ornamental design environment. However, you can file a design patent containing multiple embodiments if they are minor visual variations of the same inventive concept. Alternatively, firms often file a portfolio of design patents to cover different visual components of a product line.

14. What are the government fees to file a design patent application?

Design patent fees are significantly lower than utility fees and vary based on the inventor's entity status. The total initial USPTO costs (comprising filing, search, and examination fees) are structured as follows:

15. Are there ongoing maintenance fees required to keep a design patent active?

No. This is an immense financial advantage. While utility patents require expensive maintenance fees at 3.5, 7.5, and 11.5 years to keep them from expiring, design patents require zero maintenance fees. Once the initial issuance fee is paid, the patent remains fully active for the entire 15-year term with no extra costs.

16. How long does the USPTO take to examine and grant a design patent?

The design patent process is much faster than the utility path. The average timeline from initial submission to final issuance typically spans 12 to 18 months, compared to the 2 to 5 years often required for complex utility applications.

17. What is the "One-Year Grace Period" for filing a design patent in the U.S.?

The United States provides a strict 12-month grace period. If you publicly disclose your design, sell the product, or offer it for sale anywhere in the world, you must file your U.S. design application within exactly one year of that date. If you miss this window, the design enters the public domain, and your patent rights are lost forever.

18. Why are drawings considered the most critical part of a design patent application?

In a design patent, the drawings are the legal claims. There is virtually no descriptive text. The application relies entirely on high-quality black-and-white line drawings (or occasionally photographs) showing every angle of the product (top, bottom, front, back, left, right, and perspective). If a line is drawn incorrectly, it permanently alters your scope of legal protection.

19. What do solid lines versus dashed (broken) lines mean in a design patent drawing?

• Solid Lines: Define the exact ornamental features that you are claiming as your protected invention.
• Broken/Dashed Lines: Illustrate the environmental structure of the product. They show how the design sits on an object but indicate that those specific portions are not part of the claimed monopoly, allowing you to broaden your scope of protection.

20. How do I protect my product design in international markets?

Design patents are strictly territorial. To protect your design abroad, you can utilize the Hague System for the International Registration of Industrial Designs. This framework allows you to file a single international application to seek design protection in up to 100 countries simultaneously, eliminating the need to file separate native applications in every single country.

Legal Disclaimer: This article is provided for general informational purposes only and does not constitute legal advice. Reading this content does not create an attorney-client relationship. IP law is highly fact-specific — contact a licensed patent attorney to discuss your particular situation. Johnson & Phung PLLC is a registered patent and trademark law firm.
